Home › Programmable DC Load
Maynuo M97 & M98 Series
Programmable DC Electronic Loads
Maynuo offers two programmable DC electronic load families: the versatile M97 series for general power testing, and the M98 series optimised for LED-driver testing. Choose your series below — or compare them side by side.
Choose your series

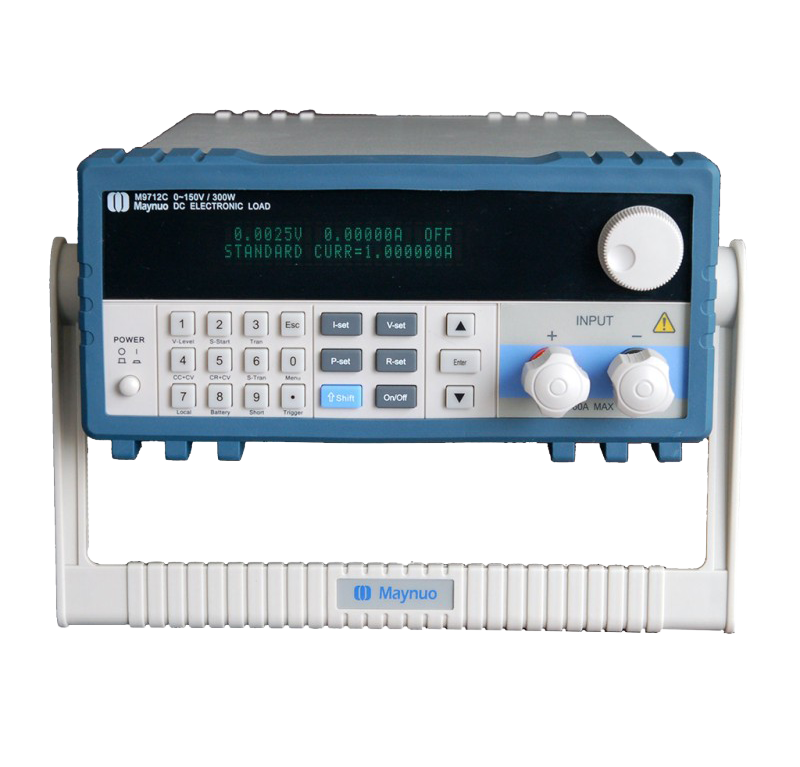

M97 Series
Programmable DC Loads
General-purpose electronic loads from 150 W to 6 kW. For testing power supplies, batteries, chargers, adapters, solar & fuel cells. 16 models.
150 W–6 kW
Power
240 A
Max current
150/500 V
Voltage
M98 Series
Programmable LED DC Loads
Compact loads with a dedicated LED-driver test mode, for accurately simulating and testing LED power supplies and drivers. 3 models.
200–300 W
Power
30 A
Max current
150/500 V
Voltage
M97 vs M98 — which series?
| M97 Series | M98 Series | |
|---|---|---|
| Type | Programmable DC load | Programmable LED DC load |
| Best for | Power supplies, batteries, chargers, solar/fuel cells | LED drivers & LED power supplies |
| Power range | 150 W – 6 kW | 200 – 300 W |
| Max current | up to 240 A | 30 A |
| Max voltage | 150 V / 500 V (B) | 150 V / 500 V (B) |
| Operating modes | CC · CV · CR · CW (+ CC+CV, CR+CW) | CC · CV · CR · CW + LED mode |
| Models | 16 (M9711 – M9718) | 3 (M9811, M9812, M9812B) |
Built to the same standard
Multiple operating modes
CC, CV, CR and CW modes — plus combined and dynamic testing.
High precision
Down to 0.01 mA / 1 mV resolution with up to 0.03% basic accuracy.
Full protection
Over-voltage, current, power, temperature and reverse-polarity protection.
VFD display & smart fan
Bright VFD readout and temperature-controlled fan for quiet operation.
PC control & automation
GPIB / RS-232 / RS-485 / USB with PC software for automated test sequences.
Battery & dynamic test
Battery capacity testing and fast dynamic load steps with adjustable edges.
Not sure which series you need?
Tell us your power, current and voltage requirements and we'll recommend the right Maynuo load.
