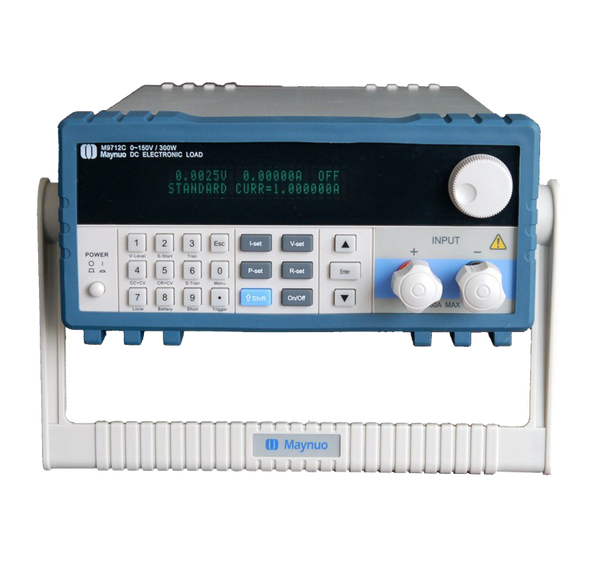

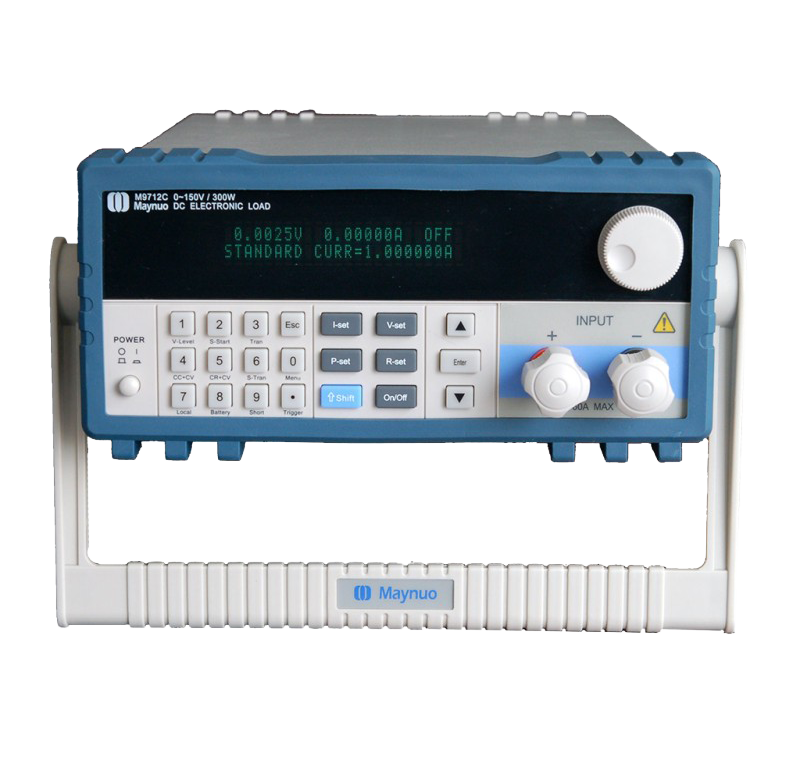

Maynuo M9712 DC Electronic Load 0-30A 0-150V 300W

€625.00

Quantity

The Maynuo M9712 is a 300W programmable DC electronic load (0–30A / 0–150V). It supports six operating modes — CC, CV, CR, CW, CC+CV, and CR+CV — with fast dynamic response up to 25 kHz and a current slew rate of 2.5 A/µs.

Overview

The Maynuo M9712 is a compact, high-precision programmable DC electronic load designed for professional testing of DC power sources. It provides four primary operating modes — constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CW) — plus combined CC+CV and CR+CV modes, with 0.1 mA / 1 mV resolution and up to 0.03% basic accuracy for repeatable, lab-grade measurements. From validating a bench power supply to profiling a battery pack or qualifying an LED driver, the M9712 delivers stable, accurate loading across its full operating range — making it an ideal everyday workhorse for R&D, production and education.

300W

Max power

30 A

Max current

150 V

Max voltage

0.03%

Accuracy

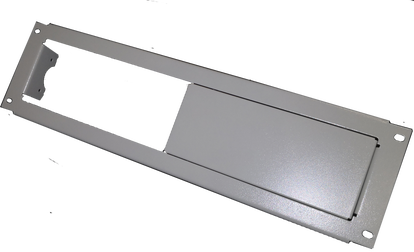

A fast dynamic mode (up to 25 kHz, 2.5 A/µs) reproduces real-world transient and load-step conditions, while built-in battery-capacity testing, short-circuit simulation and automatic multi-step test sequences cover everyday R&D and production work. The M9712 is housed in a rugged 19-inch rack-mountable chassis with a bright VFD display and a temperature-controlled fan, and can be fully remote-controlled over optional RS-232 / RS-485 / USB using the free PC software.

Typical applications

Power supply & SMPS testing

Battery & charger testing

Adapter & USB-PD testing

LED driver testing

Solar & fuel cell characterisation

R&D, production & education

Key features

4 operating modes

CC, CV, CR and CW plus combined CC+CV / CR+CV.

Fast dynamic mode

Dynamic response up to 25 kHz, 2.5 A/µs slew rate.

High resolution

0.1 mA / 1 mV resolution, up to 0.03% accuracy.

Full protection

Over-voltage, current, power, temperature and reverse polarity.

Battery test

Capacity testing up to 999 Ah with cut-off voltage.

Remote control

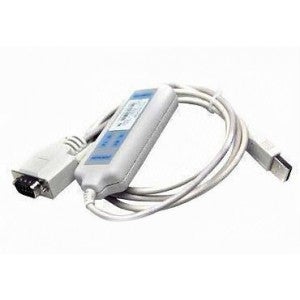

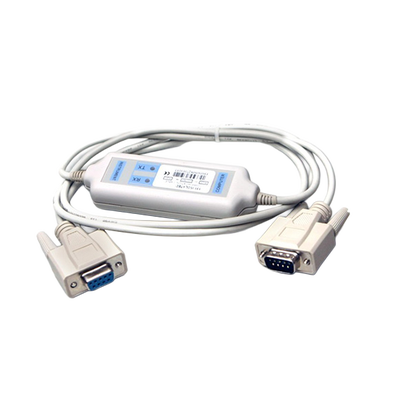

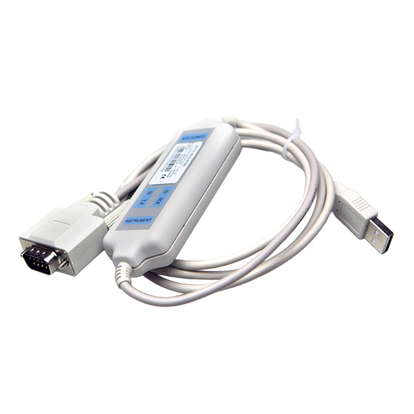

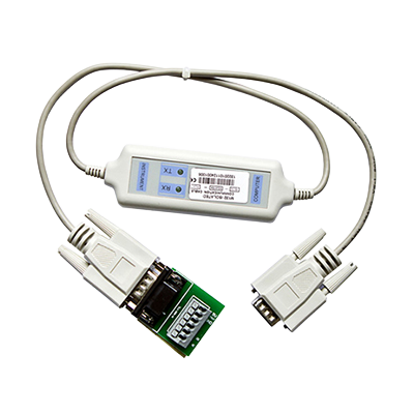

Optional RS-232 / RS-485 / USB with Modbus.

Operating modes

CC — Constant Current

Sinks a set current regardless of input voltage.

CV — Constant Voltage

Holds the source at the set voltage.

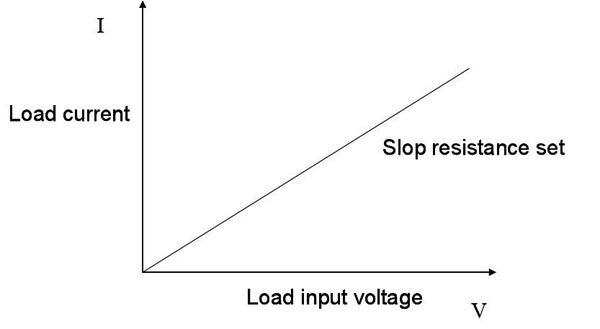

CR — Constant Resistance

Current proportional to input voltage.

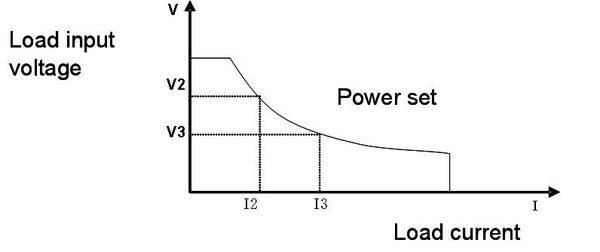

CW — Constant Power

Consumes a constant power as V and I vary.

Specifications

Maynuo M9712 — Technical specifications
Max. power dissipation	300 W
Input voltage range	0–150 V
Input current range	0–30 A
Operating modes	CC / CV / CR / CW (+ CC+CV, CR+CV)
CC resolution / accuracy	0.1 mA · 0.03% + 0.05% FS
CV resolution / accuracy	1 mV · 0.03% + 0.02% FS
CR range	0.03 Ω – 10 kΩ
CW (power) range	0 – 300 W
Voltage measurement	0–150 V · 0.015% + 0.03% FS
Current measurement	0–30 A · 0.05% + 0.05% FS
Dynamic mode	0 – 25 kHz · 2.5 A/µs
Battery test	capacity up to 999 Ah
Interfaces (optional)	RS-232 · RS-485 · USB · Modbus
Display	VFD (voltage / current / power)
Protection	OVP · OCP · OPP · OTP · reverse polarity
Dimensions (H×W×D)	108 × 214 × 365 mm
Weight	6.5 kg
